X3 HP SiteFlow integration (X3 EN)

Overview

The ability to pass Product Configuration Data and Print Ready PDF(s) to HP PrintOS/SiteFlow is now available in the CloudLab Data Center. Below follows the configuration methods and related requirements to enable this feature.

What is HP PrintOS SiteFlow

SiteFlow is an End-to-end workflow & production automation system.

Configuration of SiteFlow for CloudLab’s Data Center

Steps to be completed for the Configuration

These are the Steps to Configure the SiteFlow Integration:

1. Set up the API Configuration

2. Set up a Product in Magento and the Data Center

3. configure the SiteFlow IDs

4. Set up the Production Center

5. Testing

1. Set up the API Configuration

The API is used to deliver the Product Configuration and Print Ready PDFs to SiteFlow.
This is a one-time configuration.

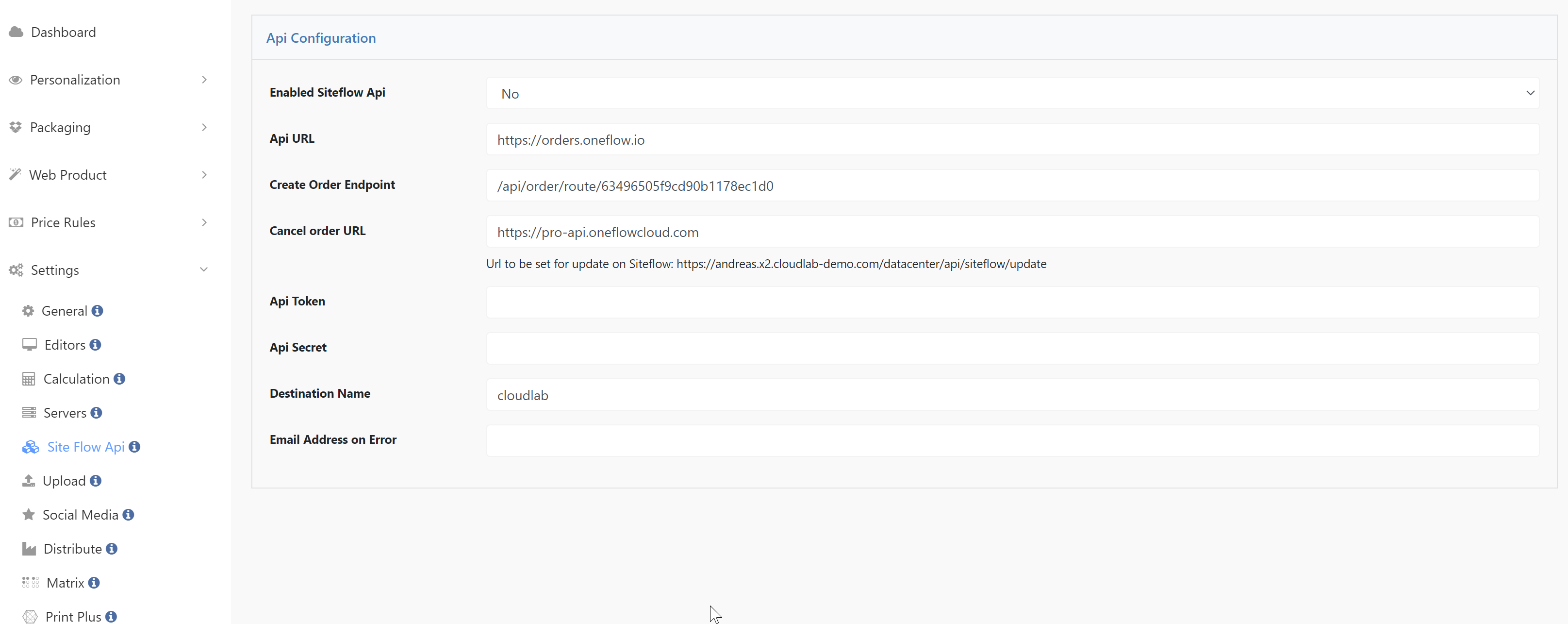

The SiteFlow API connection is configured in the Data Center under Settings > SiteFlowAPI.

2. Configure all page options

Follow these steps to set up a Product in Magento and the Data Center that will utilize the SiteFlow integration.

The assumption is that the reader has completed the training on Product Set up on both Platforms. Therefore, only detailed steps will be provided for the Add Page Options Attributes and Values that relate to the integration with SiteFlow.

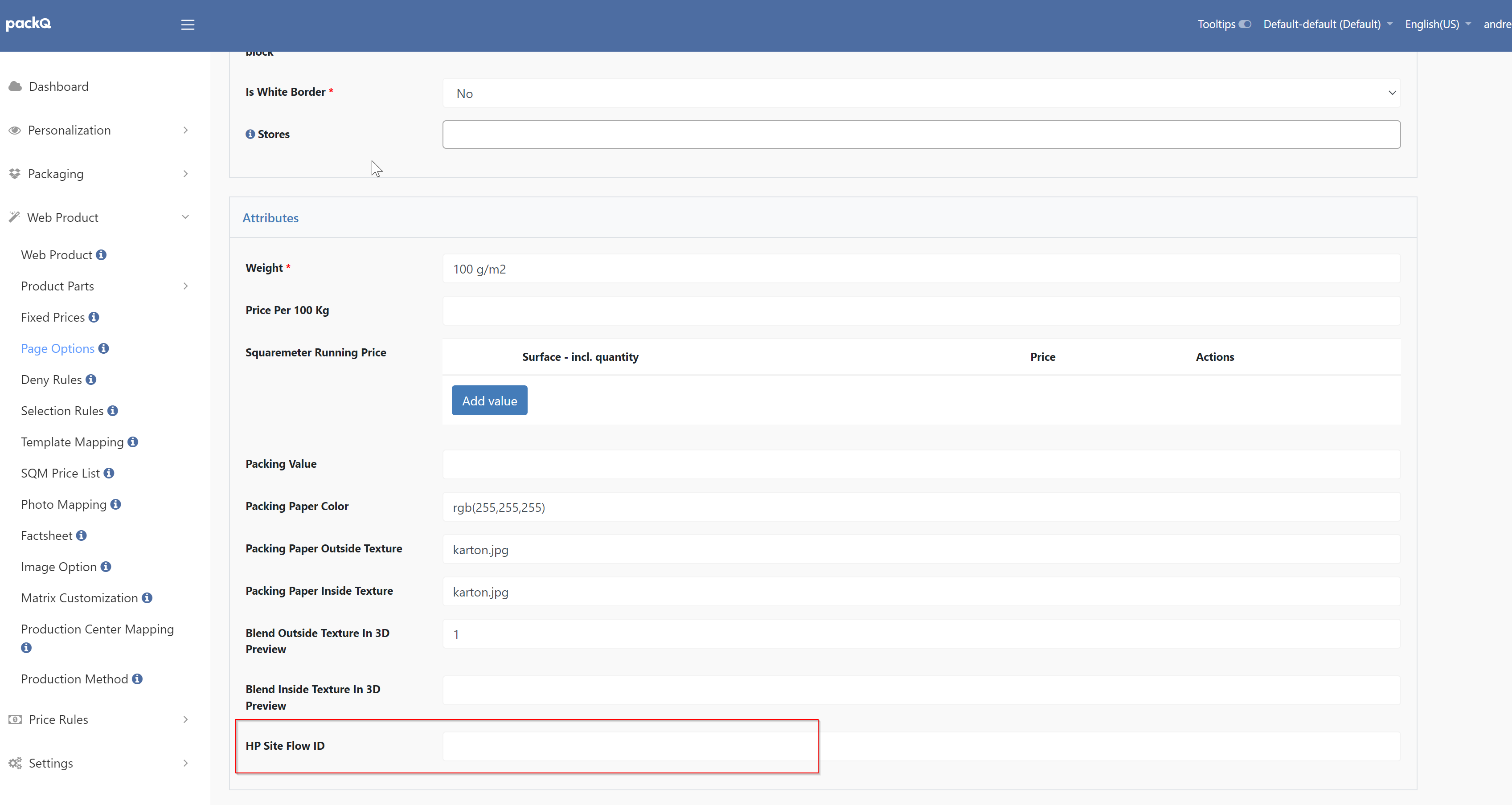

Every page option has the attribute HP Siteflow ID.

This ID needs to be filled for all page options used in the SiteFlow application. The customer gets this information from HP Siteflow. Recommendation is to use IDs in the format lower- and upper case and numbers only and no special signs or spaces.

3. Set up Production Center Mapping

A Production Center Mapping will be used to map the Data Centers Product configuration to a SiteFlow Product.

The key concept here is that with the CloudLab System you can have multiple configurations for a product, (a one-to-many scenario), whereby you do not need to set up a unique product or Skew for each configuration change. For example, in these two configurations:

Each of the above can be handled by the same Web Product linked to a single Magento Product, by using a combination of Page Options, Product Parts, Templates, and a Web Product. In other words, you can have one base Product that has selectable configurations thus producing many SKUs, without having to set up each individually.

Configure a production centre mapping under PIM > Mapping Rules > Production Center Mapping.

The Customer must provide the ID from Site Flow.

4. Testing the Workflow

Use these steps as a guideline for testing:

1. Place an order in Magento, via the front-end Product page, for a product by selecting the various configuration options and checkout.

2. Once the order has been approved the Magento status will change from Pending to Processing.
   This can be viewed in Magento under Sales > Orders or in the Data Center > Production > Orders.

3. Open the SiteFlow site and confirm the Product and its Attributes have been carried forward.

4. Test a few different configurations to ensure the Attributes are matching up correctly between each application.

Processing

All Web Products will be sent to the API regardless of the type. Once the order is placed, if it's approved (see Order Approvals) and has files attached (the same rules as the Data Center Distribute process uses) a CRON Job will pick it up and send it to the API. CRON job run approximately every five minutes.

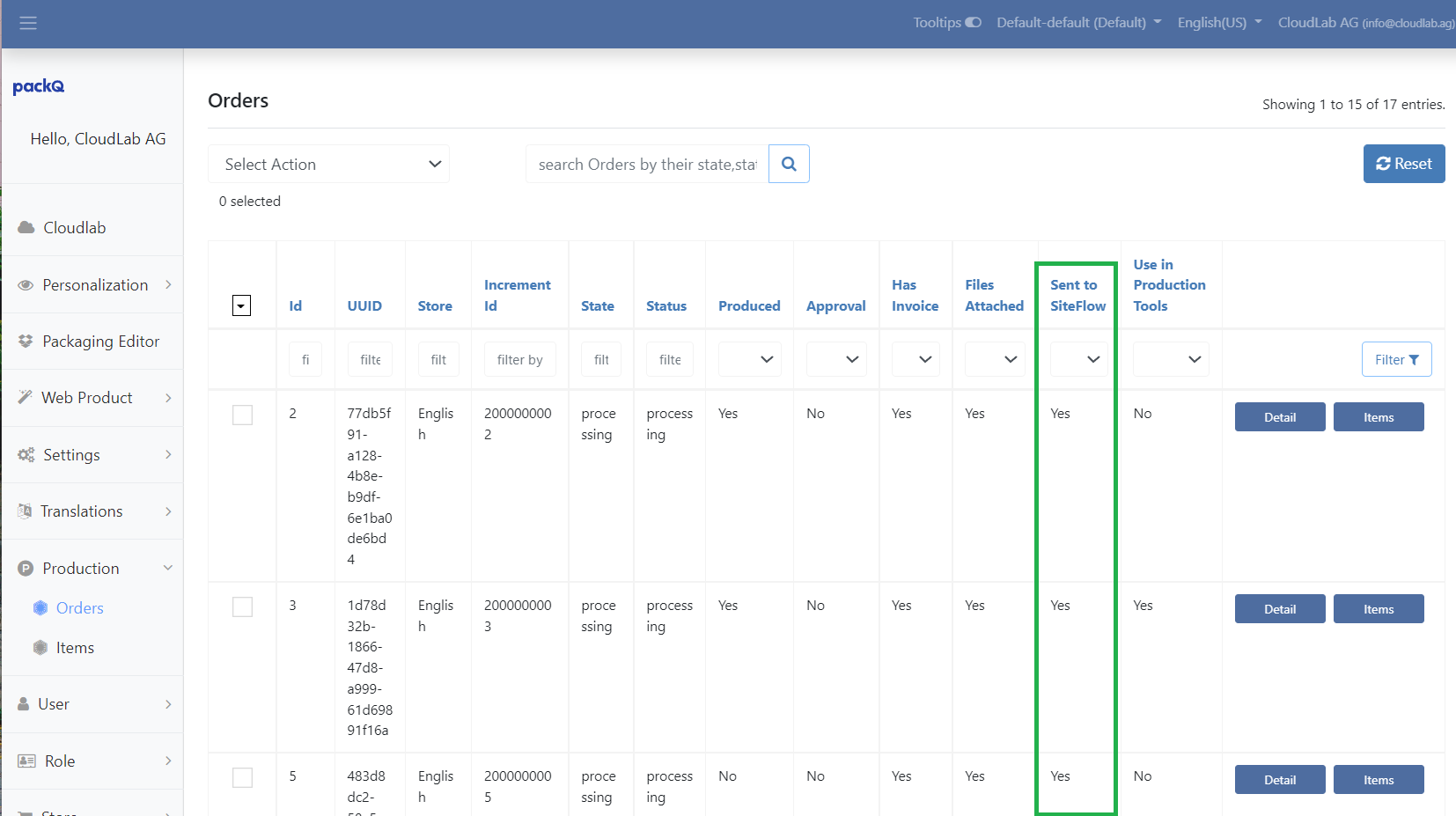

If the order is set up to appear in Data Center’s Production Orders Overview you will see a field called Sent to SiteFlow. This will appear as “Yes” or “No”. In the CloudLab Data Center, select Product > Orders.

Order Approvals
Once an Order has been placed it is approved based on the type of payment method made available and the selection of that method at the time of checkout.

• PO or Invoice are processed immediately

• Credit Card Transactions are processed when the payment has been authorized.

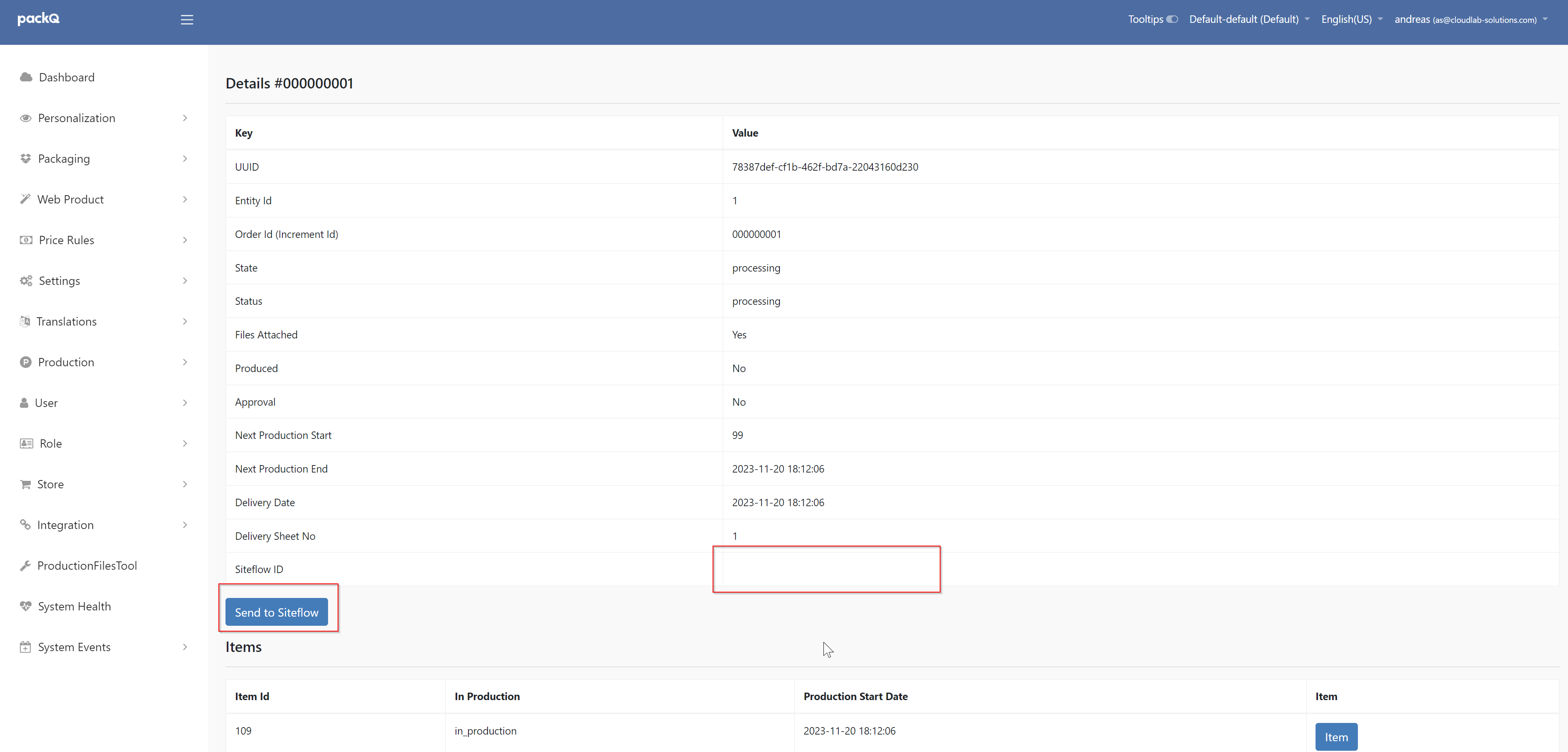

If the order was not automatically sent to SiteFlow the customer can send it manually by clicking the “Send to Siteflow” button in the order. A Siteflow ID will appear if the transfer was successful.

PLease make sure that the order has a PDF attached. If the order is sent without the PDF there is unfortunately no way to add the PDF at a later stage. It’s possible in SiteFlow but not in the webshop.

Files, Logs and Tools

API LOGS

API Logs are available via FTP under /home/ftpuser/siteflow_api

Files

The siteflow_json.phtml can be found under /datacenter/templates. Changes can be made to this file to add features to the integration.

It is strongly recommended to make a backup of the siteflow_json.phtml file before editing it.

Tools

The JSON template works the same as any other production files tool template.
It can be found under the Production Files Test Tool called siteflow_json.phtml

The JSON Template is like the JDF PHTML file available in the Production Files Test Tool. It can be edited here; you can change the structure as well as add/remove variables. Any change made to the siteflow_json.phtml while in the Production Files Test Tool is temporary and will revert to the original format when you close the Production Files Test Tool.

Should the order you wish to test not appear in the orders drop down list follow these steps

1. Return to the Data Center > Production > Orders page

2. Select the checkbox corresponding to the Order you want to view in Production Files Tool

3. Click on “Select Action”

4. Select “Use in ProductionFilesTool”

5. Click “OK” in the alert box that just popped up

Now you should be able to use the Order you just selected in the Production Files Tool.
