X1 Helper

Helpers are information based on HTML, CSS, and JavaScript. They are used, for example, to display crop marks in the OTP editor of a personalization product or to create HTML DIV's with a styling functionality.

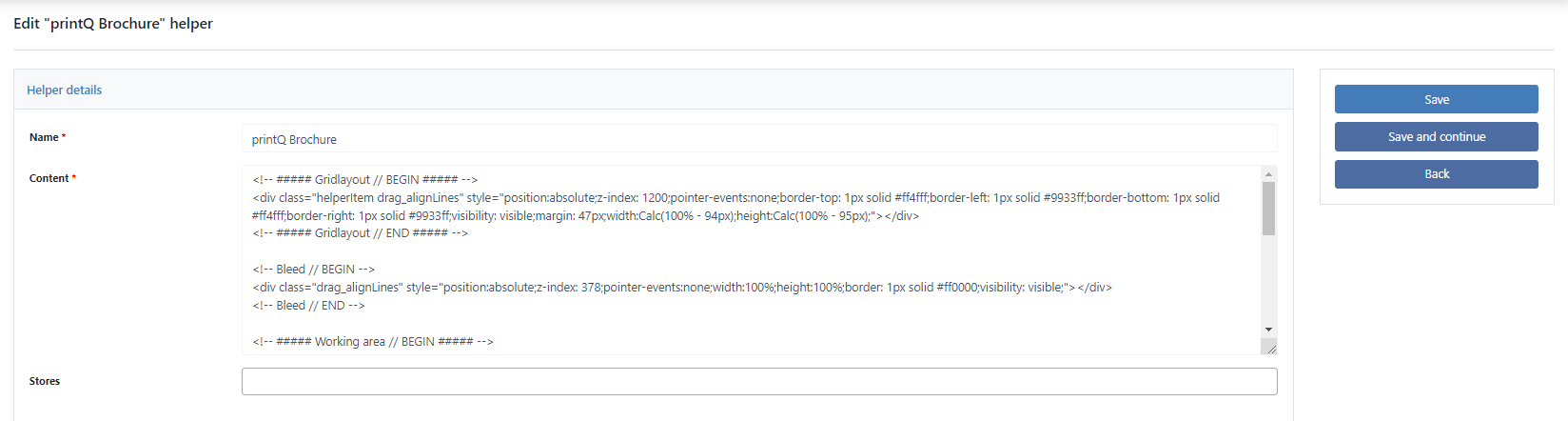

They are created under Personalization > Helpers > Edit.

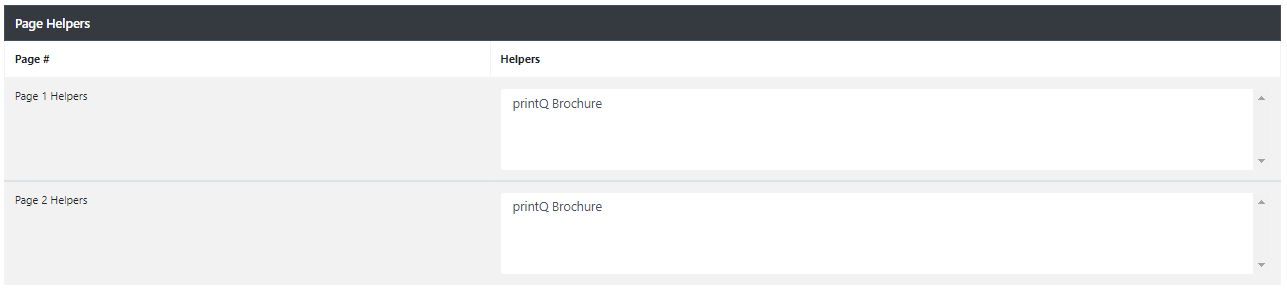

Then, any number of helpers can be assigned to a personalization template. This is done under Personalization > Templates > All Templates > Edit > PDF > Page Helpers

Example:

CODE
<div class="helperItem drag_alignLines" style="position:absolute;z-index: 1200;pointer-events:none;border-top: 1px solid #ff4fff;border-left: 1px solid #9933ff;border-bottom: 1px solid #ff4fff;border-right: 1px solid #9933ff;visibility: visible;margin: 47px;width:Calc(100% - 94px);height:Calc(100% - 95px);"></div>
<div class="drag_alignLines" style="position:absolute;z-index: 378;pointer-events:none;width:100%;height:100%;border: 1px solid #ff0000;visibility: visible;"></div>
<div class="drag_alignLines" style="position:absolute;z-index: 377;pointer-events:none;margin: 8px;width:Calc(100% - 16px);height:Calc(100% - 16px);border: 1px solid #4a4a4a;box-shadow: 0 0 0 600px rgba(243,244,245,0.8), 1px 1px 0 0 #666, 2px 2px 0 0 #666;visibility: visible;"></div>
<div class="helperItem" style="position: absolute;z-index: 999;pointer-events: none;width: 100%;color: #9933ff;bottom: -20px;width: 100%;font-size: 12px;text-align: right;">We recommend editing within the purple area (grid layout).</div>
<div class="helperItem" style="position: absolute;z-index: 999;pointer-events: none;width: 100%;color: red;bottom: -35px;width: 100%;font-size: 12px;text-align: right;">Red area will be cutted in final product.</div>
<div class="helperItem drag_alignLines" style="border-right: 1px dotted rgba(0,0,0,0.55);position: absolute;z-index: 999;pointer-events: none;width: 50%;height: 100%;visibility:visible;"></div>
<div class="helperItem " style="position: absolute;z-index: 999;pointer-events: none;width: 100%;color: black;bottom: -20px;width: 50%;font-size: 12px;text-align: right;">Fold</div>

<!-- DIV mit Bleed // BEGIN -->
<div class="drag_alignLines" style="position:absolute;z-index: 378;pointer-events:none;width:100%;height:100%;border: 1px solid #ff0000;visibility: visible;"></div>
<!-- // END -->
